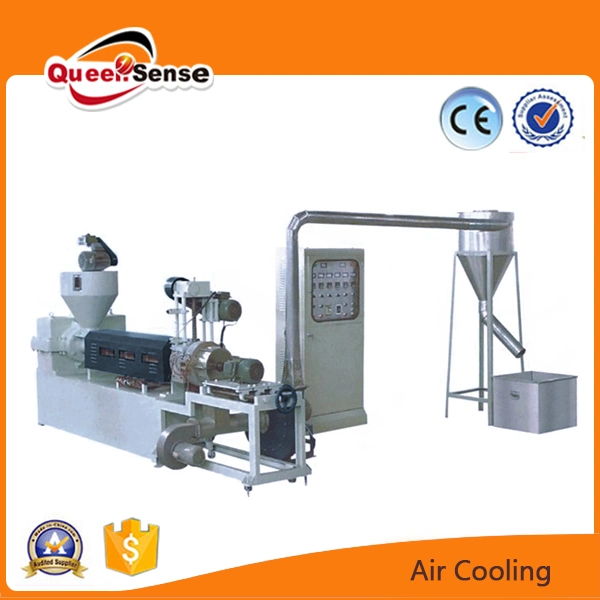

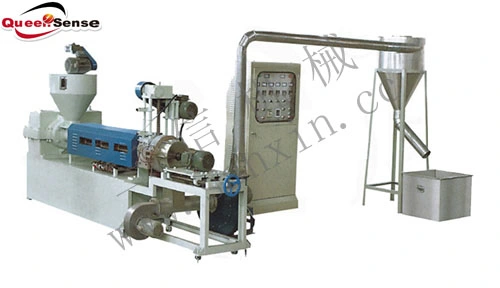

Plastic pet recycling extruder with air cooling line

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Tech

Featured Products

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical VariablesMain Technical Variables:

Model
SJ-A90SJ-A100SJ-A110SJ-A120
Type Diameter of Screw Stemφ90φ100φ110φ120
Major Diameter Ratio of Screw Stem  (L/D)L/D 20:1 -22:1L/D 20:1 -22:1L/D 20:1 -22:1L/D 20:1 -22:1
Rational Speed of Screw Stem10-100r/min10-100r/min10-100r/min10-100r/min
Main Motor Power22kw30kw37kw45kw
Output68kg/h95kg/h120kg/h135kg/h
Weight of overall(kg)2600kg2800kg3000kg3200kg
Cover dimensions (l×w×h) (mm)4000×1500×18004000×1500×18004000×1500×18004600×1500×1800


Plastic Pet Recycling Extrusion Machine with Air Cooling LinePlastic Pet Recycling Extrusion Machine with Air Cooling LinePlastic Pet Recycling Extrusion Machine with Air Cooling LinePlastic Pet Recycling Extrusion Machine with Air Cooling LinePlastic Pet Recycling Extrusion Machine with Air Cooling Line
